Professional Pole Pruners, Saws and Accessories
專業修枝剪桿/鋸子/配件
This catalog page is intended to be viewed online and may not be printed. Please view this page in your browser at barnel.com. If you are a distributor and would like a printed or PDF catalog, please contact us at 1 503 291-1400.

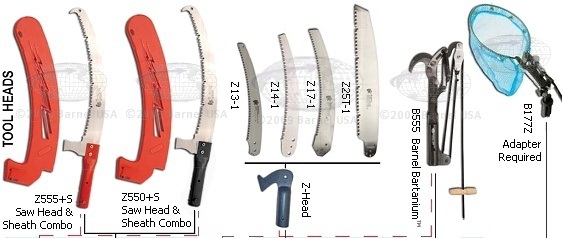

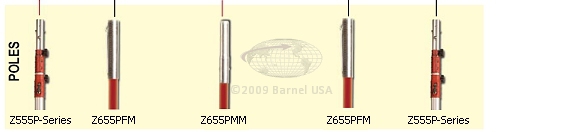

- Z555P and Z555P2 feature 3-stage extruded aircraft alloy aluminum poles with a comfortable TPR
grip
- Barnel® pole saw blades are tri-edged, laser impulse hardened hollow ground
SK4 Japanese Samurai sword steel with a hard chrome finish
- Z555 offers aggressive 5.5mm raker tooth pitch at 1.4mm blade material thickness
for high speed sawing, fits Z555S sheath
- Z550 is identical to Z555 EXCEPT: a finer less agressive 4.5mm raker tooth
pitch, 1.5mm thicker more sturdy blade material, wider/taller blade. Excellent for certain applications in less
dense wood. Recommended for palms. Fits Z555S sheath.
|
- Z-Head, B555, and Z655PR fit universally into most round fiberglass
poles
- B555, heavy-duty drop forged construction, lever assist, large cutting capacity
(1.5") with less travel time to complete the cut and less overall
weight
- Adapters promote easy change out of tools and interchangeability between
tool and poles as applications dictate
- B177Z precious fruit picker offers adjustable bag angle, razor sharp
"U" shaped cutting blade and by-pass cutter, fits Z555PR or Z655PR
adaptors to connect to any Barnel® aluminum or universal size pole
- Universal size plug-in fiberglass insulated pole sections with UV
inhibitor and aluminum ferrules for added strength
|
- Z55P與Z555P2附有以飛機用鋁合金三段式加壓而成的桿子,搭配舒適的熱塑性橡膠把手
- Barnel®桿式鋸子的鋸齒為三齒,雷射脈衝增加硬度,以SK4日本武士刀的鋼製成。
- Z555附有強力的6.0mm耙物齒,耙物齒前後是1.4mm厚的刀片,適合高速切割。
- Z550與Z555相似,但Z550擁有較平緩的4.5mm耙物齒,比Z555厚1.5mm的堅固刀片。非常適合硬度較低的木材。建議用於棕櫚樹。
|
- Z-Head、B555與Z655PR可以套用在幾乎所有圓柱形玻璃纖維桿上,包括百齡的桿子。
- B555擁有厚重的鍛造結構、控制桿、可用較短的時間切割大物(1.5”)。
- 轉接頭使變換工具變得容易,並且可根據需要在工具與桿子之間替換使用。
- B177Z小型水果摘取竿可調整網子的角度,以雷射切割成「U」型的刀片以及長形切割器可用Z555PR或Z655PR轉接頭來裝在任何Barnel®鋁製桿或一般桿子
- 全球通用的接頭以及用玻璃纖維包覆的桿子,搭配抗紫外線處理及鋁製包頭,增加桿子強硬度。
|
![](images/products/allpoles1.jpg)
![](images/products/allpoles3.jpg)
![](images/products/pole.jpg)
![](images/products/Z555p.jpg)
Z555P
![](images/products/Z555p1.jpg)
Z555P2
![](images/products/Z655pmm.jpg)
Z655PMM
![](images/products/Z655pfm.jpg)
Z655PFM
|
Model |
|
|
|
|
|
|
|
|
|
|
Description 说明 |
Z555P |
|
•![](images/structure/pixel.gif) |
|
|
|
|
|
![](images/structure/pixel.gif) |
74-181"
(188-460cm) |
67.0oz
(1900g) |
6-15'
Telescoping Aluminum Pole 6-15´可伸縮鋁桿 |
Z555P2 |
|
•![](images/structure/pixel.gif) |
|
|
|
|
![](images/structure/pixel.gif) |
|
90-230"
(229-584cm) |
80.0oz
(2270g) |
7.5-19'
Telescoping Aluminum Pole 7.5-19´可伸縮鋁桿 |
Z555PR |
|
|
|
|
|
|
![](images/structure/pixel.gif) |
|
9
1/2" (24cm) |
5.1oz
(145g) |
Aluminum
Adapter 鋁製轉接頭 |
Z655PFM |
|
|
|
|
|
|
![](images/structure/pixel.gif) |
|
72"
(183cm) |
34.9oz
(990g) |
6'
Fiberglass Pole Female to Male 6´玻璃纖維桿凹座到凸座 |
Z655PMM |
|
|
|
|
|
|
![](images/structure/pixel.gif) |
|
72"
(183cm) |
34.9oz
(990g) |
6'
Fiberglass Pole Male to Male 6´玻璃纖維桿凸座到凸座 |
Z655PR |
|
|
|
|
|
|
![](images/structure/pixel.gif) |
|
9
1/2" (24cm) |
4.9oz
(140g) |
Aluminum
Adapter 鋁製轉接頭 |
Z655PO |
|
|
|
|
|
|
![](images/structure/pixel.gif) |
|
9
3/4" (25cm) |
5.1oz
(145g) |
Aluminum
Adapter 鋁製轉接頭 |
Z555+S |
•![](images/structure/pixel.gif) |
|
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
|
|
|
17"
(430mm) |
26"
(66cm) |
27.3oz
(775g) |
Saw
Head w/ Sheath 接頭式鋸子w/刀鞘 |
Z550+S |
•![](images/structure/pixel.gif) |
|
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
|
|
|
17"
(430mm) |
26"
(66cm) |
29.6oz
(830g) |
Saw
Head w/ Sheath 接頭式鋸子w/刀鞘 |
Z-HEAD |
|
|
|
|
|
|
|
|
6
1/4" (16cm) |
8.8oz
(250g) |
Universal
Saw Blade Mount/Hook 通用式鋸子刀片 固定式/鉤子 |
Z13-1 |
•![](images/structure/pixel.gif) |
|
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
|
|
|
12
1/2" (320mm) |
15"
(38cm) |
4.2oz
(120g) |
Curved
Saw Blade 曲線鋸子刀片 |
Z14-1 |
•![](images/structure/pixel.gif) |
|
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
|
|
|
14"
(355mm) |
15
3/4" (40cm) |
4.8oz
(135g) |
Curved
Raker Saw Blade 曲線耙物鋸子刀片 |
Z17-1 |
•![](images/structure/pixel.gif) |
|
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
|
|
|
14
1/2" (370mm) |
17
1/4" (44cm) |
6.3oz
(180g) |
Heavy
Duty Curved Saw Blade 厚重曲線鋸子刀片 |
Z25T-1 |
•![](images/structure/pixel.gif) |
|
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
|
|
|
17
1/4" (440mm) |
20
1/4" (51cm) |
8.6oz
(245g) |
Large
Straight Raker Saw Blade 大型耙物鋸子直刀片 |
B555 |
|
|
|
|
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
•![](images/structure/pixel.gif) |
1
1/2" (40mm) |
16
1/2" (42cm) |
40.2oz
(1140g) |
By-pass
Pruner Head 長形修枝剪頭 |
B177Z |
|
|
|
|
|
|
•![](images/structure/pixel.gif) |
1/4"
(7mm) |
19
3/4" (50cm) |
28.2oz
(800g) |
Precious
Fruit Picker Head 小型水果摘取竿頭 |
| |
|
